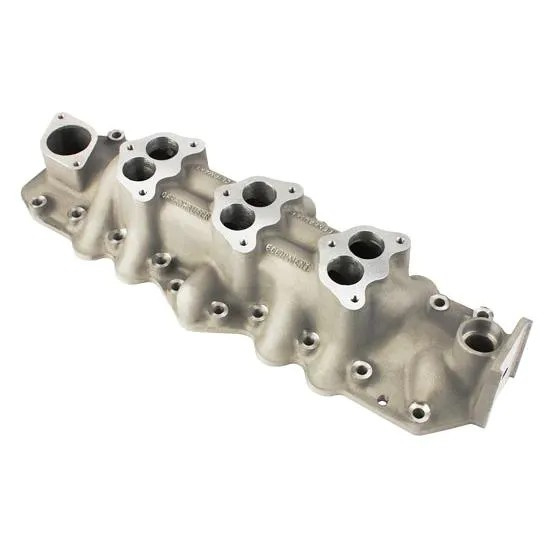

Ford Flathead Triple Carb Intake Manifold 1077 Offenhauser 1949-1953
SKU: 560-1077
This offy 3x2 power manofold is designd for stromberg 97 carbs , 9super7 etc.
Manifold has 4 5/8 carb center
The front of the intake manifold has the boss or frange for the generator or fan assembly to mount to
It also has the fill and draft holes behind this flange
For 1949-53 Ford Flatheads
- 4-5/8" carb centers
- Three Deuce carburetor style
- Has boss or flange for generator or fan assembly to mount to
- Has the fill and draft holes behind flange
- Generator adapter bracket NOT included
Manifold includes:
- 1.375" hole in the front of the intake for an oil-fill or breather tube
- 1.25" hole in the front of the intake for the road draft tube
Note: We recommend our intake gasket for use with these intake manifolds.
