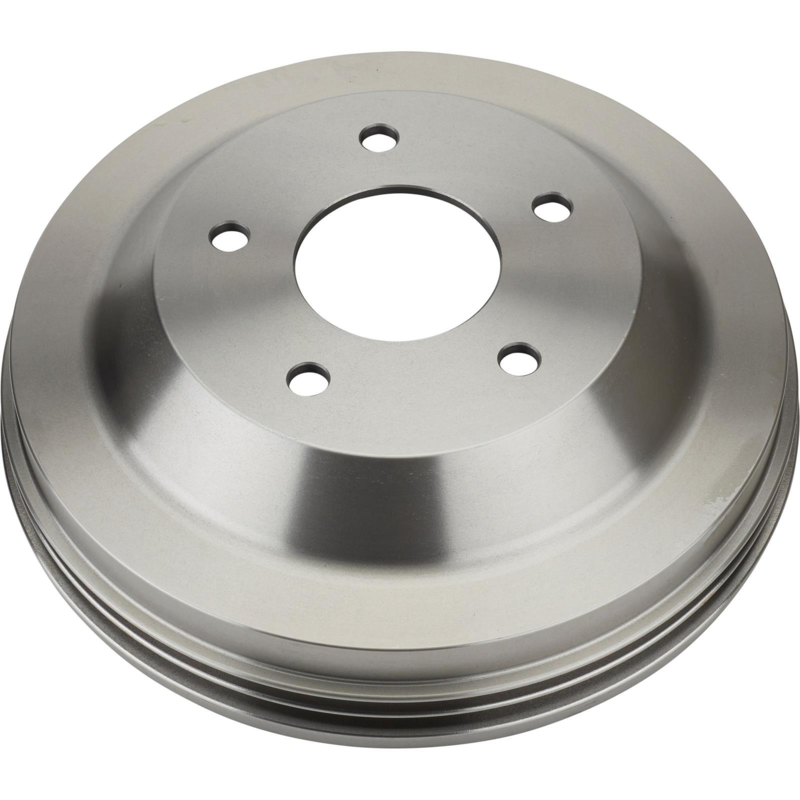

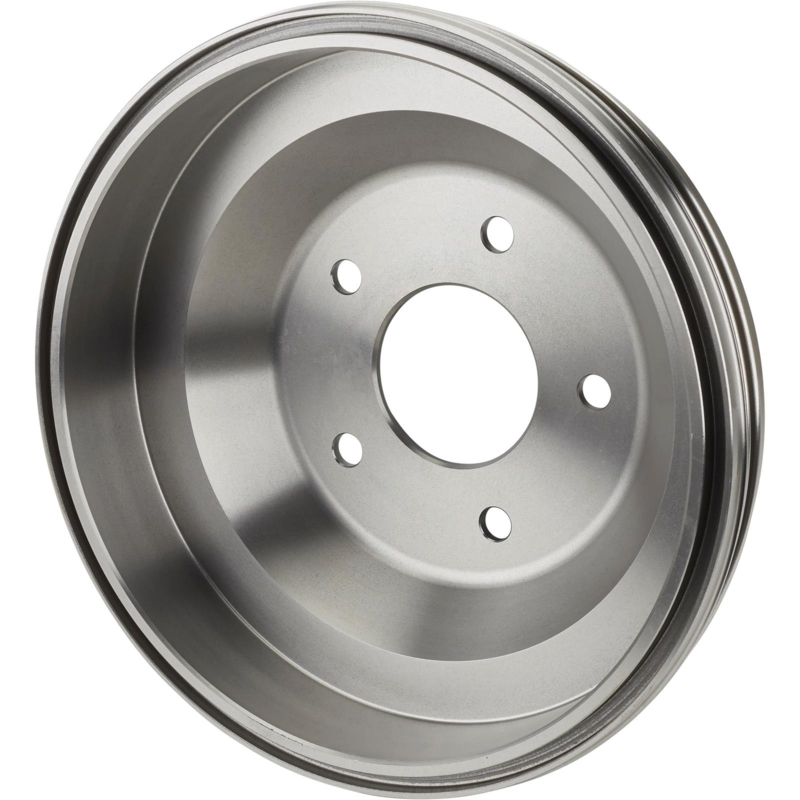

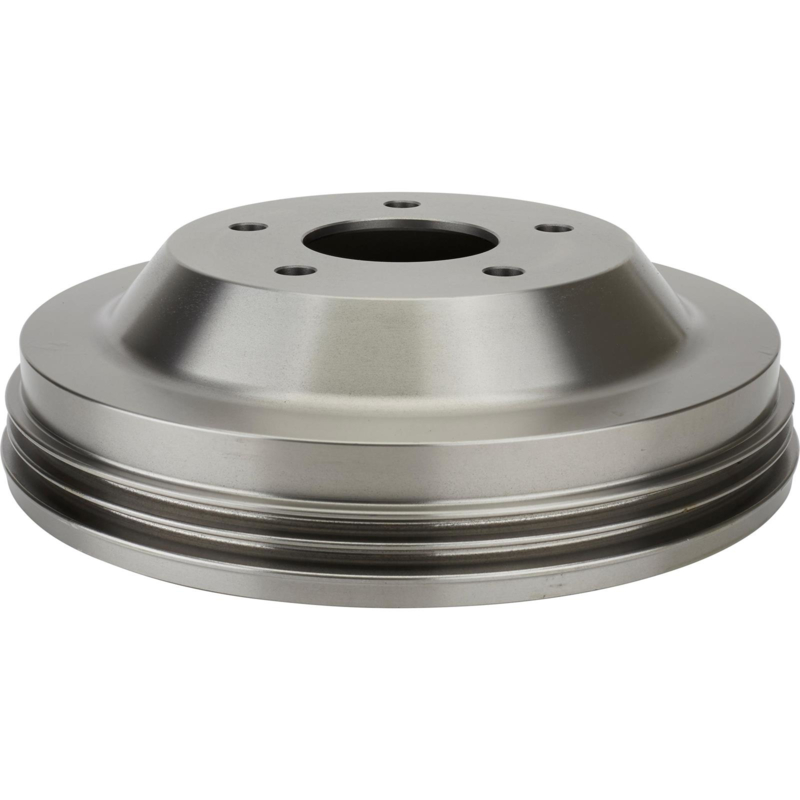

12 x 2 Brake Drum for Bendix Style 1937-48 Ford Brakes
SKU: 910-65400
DETAILS
MFG. Part #:91065400
Overall Diameter:13.63"
Outside Diameter:12.70"
Inside Diameter:12.00"
Overall Width:3.812"
Flange Diameter:3.26"
Bolt Pattern:5 on 5.5"
Material Type:Iron
Sold in Quantity:Each
Info
We offer these new iron 12" x 2" brake drums with a 5 on 5-1/2" bolt circle, which are impossible to find elsewhere. Use this brake drum with our Bendix Style self-energizing 12" x 1-3/4" or 12" x 2" backing plate assemblies for 1937-1948 Ford.
Item Details
For use with 910-65410, 910-65420,
910-65430 & 910-65440
Notes
The friction surface goes all the way to the edge. The surface is chamfered but the shoe surface is to the edge. Hub I.D. is 3.25" Mounting face is 7.88" O.D. Drop from face is 1.40"
