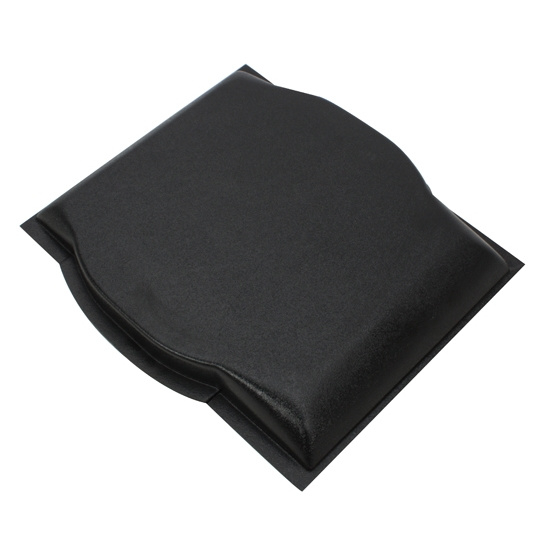

Walker WS55A Radiator Fan Shroud, Style D, 22 x 18 Inch

DETAILS

Overall Width:18.00"

Overall Height:22.00"

Overall Diameter:20.50"

Depth:2.00"

Inside Diameter:16"

Cooling Fan:Single

Material Thickness:.18"

Material TypePolyethylene

Finish:Natural

Hardware Included:Yes

Sold in Quantity:Each

Notes:Designed to cut hole to fit specific application. Include four mounting screws.

MFG. Part #:WS55A

Info

Maximize your radiator's effectiveness with a tight-fitting fan shroud. Use of these shrouds has produced temperature drops of up to 30 degrees!

Walker shrouds are vacuum formed from a very dense polyethylene. This high-impact, heat resistant material has a lightly textured, semigloss black finish. The cooling fan hole is not cut out so the installer can tailor that to the exact fan location and diameter.

See Application tab for application information.

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article.Radiator Cooling Performanc

Application

820-55A:

• 1932 Ford
• 1931 Ford
• 1937 Chevy Pick-up & Panel
• 1938-1940 Chevy Pick-up & Panel
• 1946 Chevy Pick-up & Panel
• 1940 Oldsmobile
• 1936-1938 Buick
• 1948-1949 Buick
• 1931-1932 Pontiac
• 1936-1937 Pontiac
• 1939-1940 Pontiac
• 1932 Plymouth P.A.
• 1932 Plymouth P.B.
• 1935 Ford
• 1936 Ford
• 1933-34 Ford
• 1937 Chev.
• 1938 Chev.
• 1939 Chev.
• 1940-41 Chev.
• 1936 Chev.
• 1934-35 Chev. Standard (Mfg. after 12/1/90)
• 1934-35 Chev. Master
• 1933 Chev. Master
• 1932 Chev.
• 1936 Chev. P.U. & Panel
• 1936 Oldsmobile
• 1936 Ply.
• 1935 Ply.
