Speedway Four-Bar Rear Axle Brackets

DETAILS

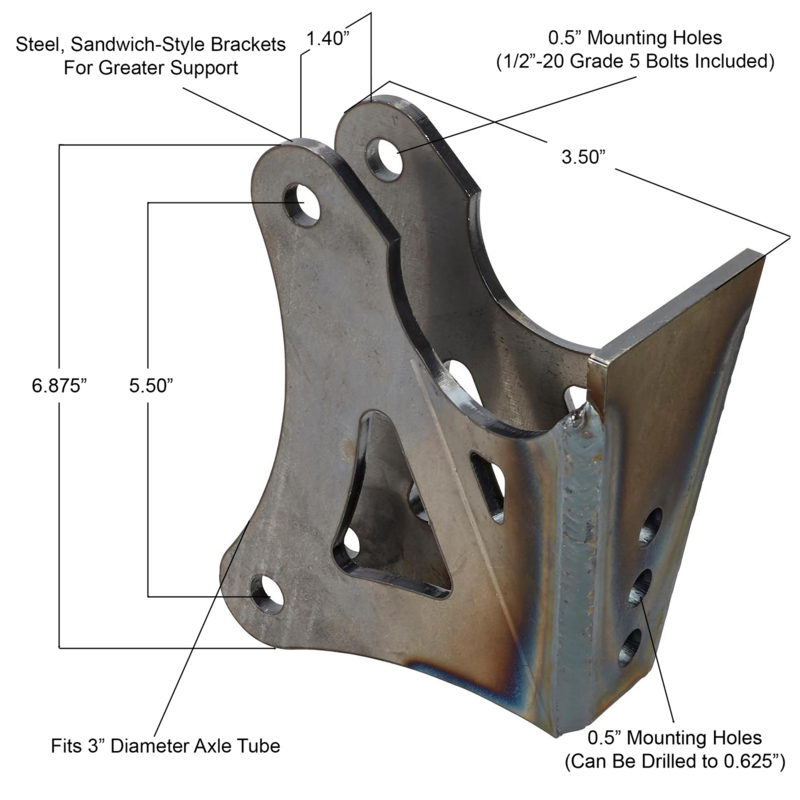

MFG. Part #:91645050

Overall Width:3.500"

Overall Length:6.875"

Hole Diameter:0.5"

Centerline of Holes:5.500"

Slot Width:1.400"

Material Type:Steel

Finish:Natural

Info

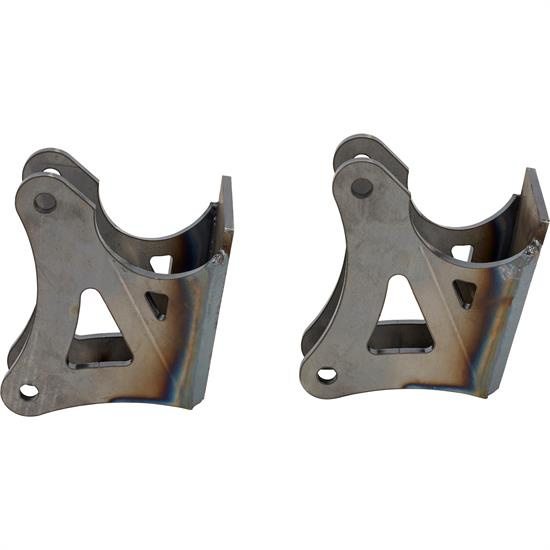

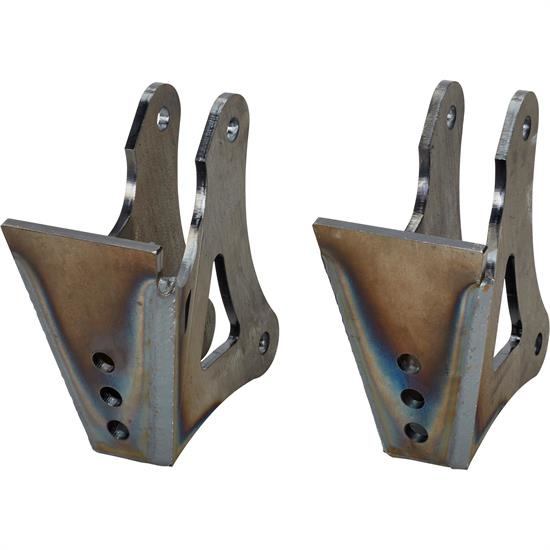

Exclusive sandwich-style brackets give greater bar support and incorporate a multi-position lower coil-over mount. Weld to 3" O.D. axle tubes only.

Lower coil-over shock mount stud not included.

• Has three 1/2" holes for shocks
• Simply drill hole size to 5/8" when using 5/8" coil-over mounting hardware
