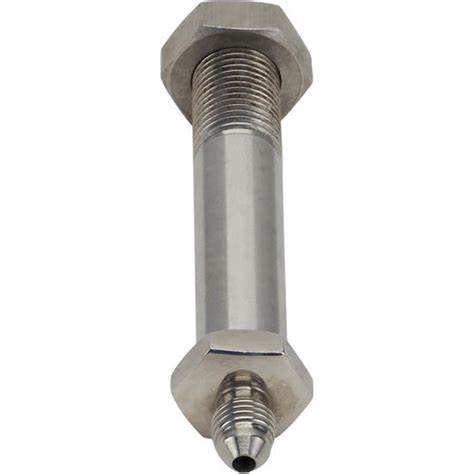

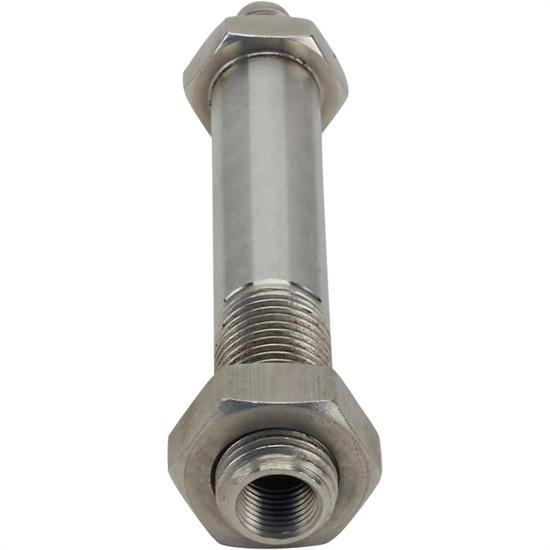

Stainless Thru-Frame Brake Line Fittings, 2-1/4 - 2-3/4 Inch

DETAILS

MFG. Part #:91031361

Overall Length:3.92"

Angle:Straight

Shank Diameter:0.545"

Shank Length:3.125"

Fitting End A:-3 AN Male

Fitting End B:1/8" NPT Female

Thread Pitch:9/16"-18

Material Type:Stainless Steel

Finish:Polished

Sold in Quantity:Pair

Notes:Requires drilling a 9/16" hole in your frame rail.

Inlet Fitting:1/8" NPT Female

Outlet Fitting:-3 AN Male

AN Size:-3 AN

Inlet Fitting Angle:Straight

Outlet Fitting Angle:Straight

Info

Use these 100% stainless steel fittings to eliminate unsightly tabs and clamps from your frame rails. Each fitting has -3 AN male threads on one end and 1/8" NPT female threads on the other. Fits frame rails 2-1/4" to 2-3/4" wide.

Sold in pairs.

Item Details

1/8" NPT female to -3 AN male
