1938-39 Ford Red Tail/Stop Lights

DETAILS

Tail Light Component: Complete Assembly

OEM Replacement:Yes

Position:Driver and Passenger Side

Bulb Type:+1157

Lens Color:Red

Bezel Finish:Stainless

Voltage:12 volts

Overall Width:2.250"

Overall Height:5.500"

Mounted Height:1.20"

Overall Thickness:4.20"

Sold in Quantity:Each

MFG. Part #:91137015

Notes:

Requires a 2.5" x 2" mounting hole. There is no DOT/SAE certification on this lens.

Info

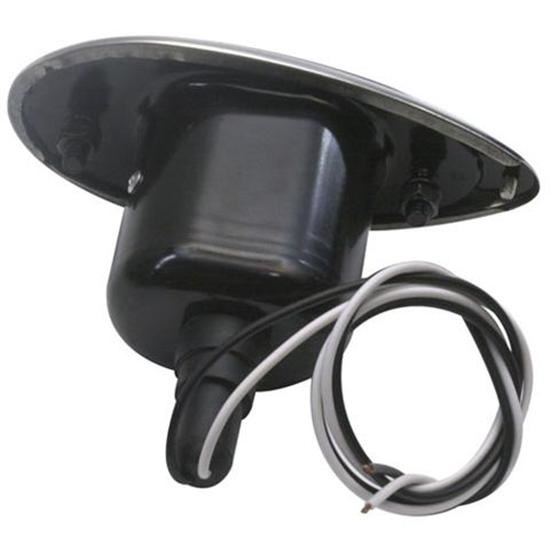

Polished stainless steel rim taillights for 1938-1939 Ford. These taillights have a glass lens, single 1157 dual-filament bulb, and match the original tail lights closely.

For 12 volt systems only.

Notes

Note: Due to the 1-piece backing plate design and factory crimped bezel, the bulbs in these taillights are not easily replaceable. Slight bending of the bezel may be required to remove the lens to access the bulb/socket area.

Wiring Code (OLD and NEW versions):

• 3-Wire Housing
  • White wire = Ground
  • Black wire = taillight
  • Green wire = Stop/turn
• 2-Wire Housing
  • White wire = Stop/turn
  • Black wire = taillight
  • Ground the housing
